Using Recoil with SPFx

Try out the latest alternative to Redux with SPFx

---

When developing with Redux or MobX, we have had to deal with the inherent complexity of these technologies. We all wish that there would be something that is simpler and easier to implement, some tech that feels more native to React programming with hook like syntax.

Is there a new technology that we can use? Yes, it's from Facebook and is called RecoilJS or simply Recoil

What is Recoil

Recoil is a State management library that allows you to define global state in manageable chunks called Atoms (instead of one large state object in Redux) and use them in your React components across your application, either directly or via selectors. Recoil Selectors are pure functions that are re-evaluated when the up-stream atoms are updated.

You can find more about Recoil at the official Website - https://www.recoiljs.org

Advantages of Recoil

• Simple and easier syntax compared to Redux
• Use of modern React Hooks
• Multiple state objects (atoms) instead of one monolithic global state object
• Pure function based selectors instead of switch-case based reducers
• selectors are re-evaluated when atoms are updated
• Selectors can derive from other selectors
• Support for synchronous and asynchronous selectors

Core Concepts of Recoil

Recoil has two core concepts

• Atoms - Atoms are global shared state objects. Each Atom has a unique key meaning that no two atoms can have the same key. Atoms are used as global state objects instead of lifting the React component state up.Atoms can be updated and are subscribable. Any component that uses an Atom value is refreshed atomatically whenever the value of that atom changes.

Lets say we want to store the information about a customer in a global state object. This can be done by defining the same as an atom -

• To define an atom, create a separate file, say GlobalState.ts.
• Define the interface for the Customer.
• Next write the imports and define the atom as shown below -

GlobalState.ts

// GlobalState.ts - Global atoms and selectors
import { atom, RecoilState } from 'recoil';

export interface ICustomer {
    id: number;
    name: string;
    limit: number;
}

export const custState: RecoilState<ICustomer> = atom({
    key: 'custatom1',
    default: {
        id: 0,
        name: '',
        limit: 0
    }
});

The above code defines an atom (global state object) that we can use in the entire component hierarchy of the React App or SPFx React component tree.

• Selectors - Selectors are pure functions that accept atoms or other selectors as input. Whenever the upstream atoms or selectors are updated, these selectors are re-evaluated. Components subscribing to the selectors are re-rendered whenever the atoms or selectors that they depend on, are changed.

Selectors can be defined in the same file where the atoms are defined. In our case we will write the code for the selector in GlobalState.ts.

First update the imports section to import a selector in addition to atom and RecoilState as shown below -

    import { atom, RecoilState, selector } from 'recoil';

Next let's write a selector function to return the Customer information as a string -

    export const customerInfo = selector({
        id: 'customerInfo',
        get: ({get}) => {
            const cust = useRecoilState(custState);
            return `${cust.id} - ${ cust.name } - ${cust.limit}`;
        }
    });

In the above code, the useRecoilState hook allows us to fetch the Atom as a plain object which is stored in the variable called cust. The selector 'customerInfo' then returns an interpolated string with the customer data.

Whenever the custState changes, customerInfo will be re-evaluated and all the components that are using the customerInfo selector will be refreshed.

How to consume the recoil atoms/selectors in components

There are two ways to consume the Global state. The first one is by consuming an atom value and the second is by consuming the value returned by a selector. To demonstrate this, let's create two components, the first one will use an atom value directly and the second one will use a selector.

CustomerData.ts

This component imports the custState atom from GlobalState.ts and makes use of the useRecoilValue hook provided by recoil to consume the custState object values.

// CustomerData.ts - Display customer data dirctly from custState atom
import * as React from 'react';
import { useRecoilValue } from 'recoil';

import { custState } from './GlobalState';

export default function CustomerInfo() : JSX.Element {

    const cust = useRecoilValue<ICustomer>(custState);

    return (
        <div>
            <h1>Customer Details -</h1>
            <div>
                ID: { cust.ID } <br/>
                Name: { cust.Name } <br/>
                Limit: { cust.Limit }
            <div>
        </div>
    );
}

Whenever any component updates the custState atom, CustomerData component will be refresh automatically.

CustomerDetails.ts

This component uses a Recoil selector instead of a Recoil Atom. Remaining logic remains the same. Since the selector customerInfo returns a string, the useRecoilValue hook uses string as the type

// CustomerDetails.ts - Display customer details via the CustomerInfo selector
import * as React from 'react';
import { useRecoilValue } from 'recoil';

import { customerInfo } from './GlobalState';   // selector

export default function CustomerDetails() : JSX.Element {

    const custInfo = useRecoilValue<string>(customerInfo);

    return (
        <div>
            <h1>Customer Details -</h1>
            <div>
                { custInfo }
            <div>
        </div>
    );
}

Please note how, in both components, useRecoilValue hook is used.

Setting up the components

In order to use these components, a root component, preferably the App component or a child-component of the App component must include a special RecoilRoot component. Recoil-based components will only work when placed under the RecoilRoot component and its children. Placing Recoil-based components elsewhere will throw an error during run-time.

In order to make the CustomerInfo and CustomerDetails components work, we have to place them inside a RecoilRoot component. RecoilRoot must be imported first from the 'recoil' package.

The following is a top-level component called CustomerDemo that contains both these components as children -

import * as React from 'react';
import { RecoilRoot } from 'recoil';
import CustomerInfo from './CustomerInfo';
import CustomerDetails from './CustomerDetails';

// Function component containing both recoil-based components
export default function CustomerDemo() : JSX.Element {
    return (
        <RecoilRoot>
            <CustomerInfo />
            <CustomerDetails />
        </RecoilRoot>
    );
}

In the above example, both CustomerInfo and CustomerDetails components make use of a Recoil Atom and Selector. Any change that takes place in the custState atom, triggers a refresh in both these components. (Note: we have not written any code to make changes to the state. This can be easily done via a Form).

Using Recoil with SPFx-React Project

Using Recoil with a SPFx project is straightforward. First create a SPFx+React project and then install Recoil using npm.

Create a SPFx-React Project using Yeoman

yo @microsoft.sharepoint

In the wizard choose WebPart, React as the framework. Next wait for the creation of the project and npm packages to be downloaded.

Next install the Recoil library using the following npm command -

npm install recoil

Creating a Simple Temperature Conversion WebPart

For this article, we will be creating a simple Temperature conversion WebPart that stores the input temperature in Celcius as a Recoil Atom (number) and derive the converted value in Farenheit as a selector.

The temperature value will be stored in an Atom called temp defined in GlobalState.ts which is then imported into other components.

GlobalState.ts

This file defines an Atom called temp which stores the input temperature in Celcius. Components can use this Atom and also update it.

Next we define a selector called farenTemp which converts the value in the temp Atom (C) to Farenheit value. This is done in the get property.

Note that both atom and selector are functions that receive a JSON object with the settings.

// GlobalState.ts : Store all the Recoil Atoms & Selectors here
import { atom, RecoilState, selector } from "recoil";

// Atom to store Celcius temperature
export const temp : RecoilState<number> = atom<number>({
    key: 'tempState',
    default: 0
});

// Selector to convert C to F
export const farenTemp = selector({
    key: 'farenTempState',
    get: ({get}) => {
        const t = get(temp);

        return ((9/5) * t) + 32.0;
    }
})

Remember to drop this file under the components folder in the SPFx WebPart project.

Celcius.tsx

This component dislays an HTML Input and allows the user to enter a temperature value in Celcius. As the user types into the input field, the change event fires and is handled by an event-handler. Inside this event handler, the atom value is updated using the setCelcius function.

Notice how the [celcius,setCelcius] syntax is similar to the useState hook syntax.

// Celcius.tsx - Component to receive temperature input from user in Celcius
import * as React from 'react';
import styles from './RecoilDemo.module.scss';
import { escape } from '@microsoft/sp-lodash-subset';

import { useRecoilState } from 'recoil';

import { temp } from './GlobalState';

export default function Celcius() : JSX.Element {

    const [celcius, setCelcius] = useRecoilState<number>(temp);

    return (
        <div>
            Enter Temp (C) : <input type="text"
            onChange={ (ev : React.ChangeEvent<HTMLInputElement>)=> {
                const temp : string = ev.currentTarget.value;

                // Set the temp value into Global State atom (temp)
                setCelcius(parseFloat(temp));
            }} />
        </div>
    );
}

Farenheit.tsx

This is a straightforward component that makes use of the farenTemp selector and displays the converted temperature in Farenheit.

Whenever the user enters a new value in the Text field in the Celcius component, the Farenheit component is refreshed automatically as it has a dependency on the farenTemp selector which in turn derives its output from the temp atom.

// Farenheit.tax
import * as React from 'react';
import styles from './RecoilDemo.module.scss';
import { escape } from '@microsoft/sp-lodash-subset';

import { useRecoilValue } from 'recoil';

import { farenTemp } from './GlobalState';

export default function Farenheit() : JSX.Element {

    const faren = useRecoilValue<number>(farenTemp);

    return (
        <div>
            <h1>Temp in F : { faren }</h1>
        </div>
    );
}

RecoilDemo.tsx

In order for everything to fit together, we need a top-level component which will have the Celcius and Farenheit components as children. This component will wrap all the components inside a RecoilRoot tag for eveything to work.

This top-level component is loaded by the WebPart and rendered (WebPart code is omitted in this article for brevity. You can find the complete code in the GitHub repo for this article.

// RecoilDemo.ts - Top-level component loaded by RecoilDemoWebPart
import * as React from 'react';
import styles from './RecoilDemo.module.scss';
import { IRecoilDemoProps } from './IRecoilDemoProps';
import { escape } from '@microsoft/sp-lodash-subset';

import { RecoilRoot } from 'recoil';
import Celcius from './Celcius';
import Farenheit from './Farenheit';

export default class RecoilDemo extends React.Component<IRecoilDemoProps, {}> {
  public render(): React.ReactElement<IRecoilDemoProps> {
    const {
      description,
      isDarkTheme,
      environmentMessage,
      hasTeamsContext,
      userDisplayName
    } = this.props;


    return (
      <RecoilRoot>
        <section className={`${styles.recoilDemo} ${hasTeamsContext ? styles.teams : ''}`}>
          <div className={styles.welcome}>

            <h2>SPFx React with Recoil JS</h2>
            <div><strong>{escape(description)}</strong></div>
          </div>
          <div>
            <p>
              Following are two different React components that use common atoms / selectors
            </p>
            <Celcius />
            <Farenheit />
          </div>
        </section>
      </RecoilRoot>
    );
  }
}

How it Works

• The RecoilDemoWebPart loads RecoilDemo.tsx React component
• RecoilDemo.tsx loads RecoilRoot and hooks up the Celcius and Farenheit components with the atom and selector defined in GlobalState.tsx
• When the user types a temperature value into the Text field in Celcius component, the temp Recoil atom is updated with the new value
• This update triggers the farenTemp selector to be executed and subsequently all components using both the atom and the selectors are re-rendered

Running the example code

Clone the github repo to a folder. Open the folder in the command prompt and run the following command

    npm install

Once done run the follown command -

    gulp serve

Now open the online workbench in a browser window and add the RecoilDemo webpart. Enter any numeric value into the text box and watch the Farenheit equivalent displayed by another component.

WebPart project code

The SPFx WebPart code sample for this article can be found at -

https://github.com/mindsharein/spfx-recoil

Conclusion

Recoil is very easy to get started with. The hook based syntax for Atoms and Selectors is very intiutive to use, especially for beginners.

With Recoil, Facebook has provided a much needed alternative to Redux and MobX for state management in React projects.

Speed-up troubleshooting with Merge-SPLogFile cmdlet

If there is a medium or large Server Farm you are managing then it is a pain when it comes to troubleshooting using Log file entries.

Thankfully there is a simple cmdlet that merges the log files from ALL THE SERVERS in the farm and provides the entries in a user-define output file. What's more, we can even filter based on several key parameters such as CorrelationID, Date, Area, Category etc.

Here's the syntax for the same -

Merge-SPLogFile -Path  [-Area ] [-AssignmentCollection ] [-Category ] [-ContextFilter ] [-Correlation ] [-EndTime ] [-EventID ] [-ExcludeNestedCorrelation ] [-Level ] [-Message ] [-Overwrite ] [-Process ] [-StartTime ] [-ThreadID ]

Technet reference - http://technet.microsoft.com/en-us/library/ff607721.aspx

Fetching Social Posts data using .NET CSOM in SharePoint 2013

I was looking up on how to work with Social Feeds using the .NET CSOM and worked out some code. Here's the code the retrieves all the Social feed post for a given user and displays them. It also provides option to enter a reply, which is then posted to that Thread.

SharePoint 2013 August 2013 Cumulative Update

Recently I rebuilt SP2013 on my box and updated to the latest SP 2013 August '13 Cumulative update. As usual I stopped the following services before running the updates -

1. IIS Admin Service
2. SharePoint Timer Job Service
3. All Search Services

Stopping the services is to make the update run faster, else it takes many many hours to complete. After running the update, restart and run the Configuration Wizard.

Once the update and re-config is completed, you should be able to see the version number of the Servers and DBs updated to 15.0.4535.1000.

Please note that only the Update for SP2013 Server needs to be run. There is no need to run the update for SP2013 Foundation.as it's included within the SP2013 Server update. An of course the March 2013 Public update needs to be in place before running this update. (The Aug 2013 update included the April and June updates so no need to run those either).

Here are the download Links -

- SharePoint 2013 August '13 Cumulative Update (CU) - http://support.microsoft.com/hotfix/KBHotfix.aspx?kbln=en-us&kbnum=2817517

- SharePoint 2013 March '13 Public Update - http://www.microsoft.com/en-US/download/details.aspx?id=36989

UserProfile Synchronization with Active Directory Direct Import

Since importing User profiles from AD using Forefront Identity Manager Sync Service is problematic and buggy, SharePoint 2013 includes a new type of import which bypasses the Forefront Identity garbage all together and directly imports from AD. The upside of this approach is that the import is blazing fast and the down-side is that it can be done only one-way. However, a one-way import is more than sufficient for most environments.

In this post i am going to show the steps involved in configuring and running the AD Direct import -

1. The first thing is to make sure that you have a User Profile Service Application provisioned and running. If it's not then you will have to create one and make yourself the Administrator of the same.

2. Once the User Profile Service Application is ready, click on the Manage button under Application Management and Manage Service Applications to come to the list of service applications. Scroll down and click on the User Profile Service Application.

3. Doing step 2 should bring us to the "Manage User Profile" page.

4. On this page, under the second heading called "Synchronization", click on the "Configure Synchronization Settings" link.

5. In the page that follows, scroll down to Synchronization Options and select the second radio button labelled "Use SharePoint Active Directory Import". Now scroll all the way down and click the OK button.

6. Now go back to the User Profile Settings page and click on "Configure Synchronization Connections" under the Synchronization heading.

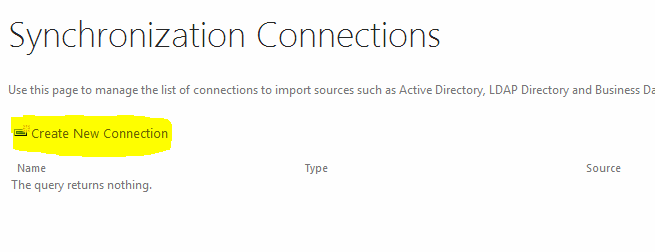

You will see a page that shows all the connections. If this is the first time, then there will be no connections. Now click the "Create New Connection" link.

7. In the "Add New Synchronization Connection" page enter the Domain details and the Sync Account name and password. The Sync account is a service account having "Replicate Directory Changes". I created a service account called "spupsync" and gave it "Replicate directory changes" permission.

On the page, scrolldown a bit and click on the "Populate Containers" button. If the User account has rights and everything is alright with your AD then you should see the Domain name (NETBIOS name) populated. Now expand and uncheck everything except users.

Finally press "OK" button on this page. You should then be able to see the newly created connection.

8. Now create the "Synchronization Timer Job" by first clicking on "Configure Synchronization Timer Job" on the main User Profile Settings page. Then chose the correct import interval (i chose once every day) and click ok.

9. Finally start the Profile Synchronization by clicking on the "Start Profile Synchronization" link. This will run the Synchronization Timer Job and pull the user details from AD very quickly.

Here are some limitations of direct AD Import -

1. Sync in one-way (Import only)

2. We cannot map AD attributes to "System" SharePoint Profile properties

3. We cannot map two different AD properties to the same Profile property

4. We cannot do cross string type mappings (a value string attribute to a multi value string property or vice versa)

Visual Studio 2012 Update 3

The Update 3 of Visual Studio 2012 is now available  here - http://support.microsoft.com/kb/2835600

It has improvements for TFS integration and other bug fixes.

Ignite Labs for O15 Products

Excellent interactive CBTs for IT Pro training on Office, O365, Exchange & Lync setup.

http://officeignitelabs.cloudguides.com/

Installing the April 2013 Cumulative Update for SharePoint Server 2013

I have been having issues with the original RTM version of SP2013 that i have installed on my Amazon EC2 VM. So i decided to try and install the Cumulative updates that are available for SharePoint 2013.

The latest CU that is available is the April 2013 CU for SharePoint 2013 Server and Foundation. So I downloaded the same and tried installing. On running the installer, it gives the error - "Required Product not found on this machine". This is because if we want to install the April 2013 CU then first we have to install the March 2013 Public Update (PU) first. So points to note are -

1. Install the March 2013 Public Update for SharePoint 2013 first.

2. Do not download the March 2013 Public Update for SharePoint 2013 FOUNDATION as it's included in the SharePoint 2013 Server Public Update itself.

The March 2013 public update for SharePoint 2013 server can be found here -

http://www.microsoft.com/en-us/download/details.aspx?id=36987

After running the installer and mandatory reboot, run the SharePoint 2013 Configuration wizard & check that everything is working fine in SharePoint.

Now download, extract and run the April 2013 CU for SharePoint Server 2013 (DO NOT DOWNLOAD THE APRIL 2013 CU FOR SP2013 FOUNDATION). The April 2013 CU for SharePoint Server 2013 can be found here -

http://support.microsoft.com/hotfix/KBHotfix.aspx?kbln=en-us&kbnum=2726992

After the installation & reboot, run the Products and Technologies Configuration Wizard to complete the Update.

I found some good links for reference and included the same here -

http://technet.microsoft.com/en-us/sharepoint/jj891062.aspx

http://technet.microsoft.com/en-US/office/ee748587.aspx

http://technet.microsoft.com/en-us/library/ff806331(v=office.15)

http://technet.microsoft.com/en-us/library/ff806338(v=office.15)

http://blogs.technet.com/b/stefan_gossner/archive/2013/04/27/april-2013-cu-for-sharepoint-2013-has-been-released.aspx

http://blogs.technet.com/b/stefan_gossner/archive/2013/03/21/march-public-update-for-sharepoint-2013-available-and-mandatory.aspx

http://blogs.msdn.com/b/russmax/archive/2013/04/01/why-sharepoint-2013-cumulative-update-takes-5-hours-to-install.aspx
